产品描述

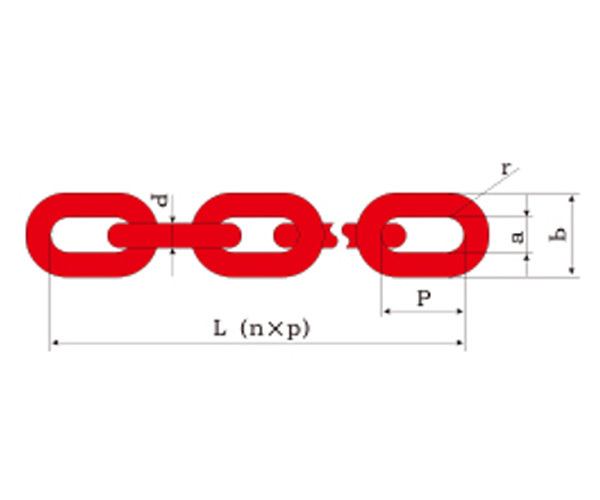

Code,dimension and properlies(Grade B)
|
Code
|
Size
d×p mm |
Width mm
|
Curve
Radius r mm |
Weight
kg/m |
Test Load
kN |
Elongation
at Test Load max % |
Breaking
Load min kN |
Total
Elongation at Fracture min % |
|
|
Inside
min. a |
Outside
max. b |
||||||||
|
TC1004012/110
|
10×40
|
12
|
34
|
15
|
1.9
|
85
|
1.4
|
110
|
12
|
|
TC1405017/190
|
14×50
|
17
|
48
|
22
|
4
|
150
|
1.4
|
190
|
12
|
|
TC1806421/320
|
18×64
|
21
|
60
|
28
|
6.6
|
260
|
1,4
|
320
|
12
|
|
TC1906522/360
|
19×64.5
|
22
|
63
|
28.5
|
7.8
|
290
|
1.4
|
360
|
12
|
|
TC2208626/4B0
|
22×86
|
26
|
74
|
34
|
9.5
|
380
|
1.4
|
480
|
12
|
|
TC2408628/570
|
24×86
|
28
|
79
|
37
|
11.6
|
460
|
1.4
|
570
|
12
|
|
TC2408828/570
|
24×87.5
|
28
|
79
|
37
|
11.5
|
460
|
1.4
|
570
|
12
|
|
TC2609230/670
|
26×92
|
30
|
86
|
40
|
13.7
|
540
|
1.4
|
670
|
12
|
|
TC3010834/890
|
30×108
|
34
|
98
|
46
|
18
|
710
|
1.4
|
890
|
12
|
Code,dimension and properlies(Grade C)
|
Code
|
Size
d×p mm |
Width
mm |
Curve Radius
r mm |
Weight
kg/m |
Test Load
kN |
Elongation
at Test Load max % |
Breaking
Load min kN |
Total
Elongation at Fracture min % |
|
|
Inside min.
a |
Outside max.
b |
||||||||
|
TC1004012/130
|
10×40
|
12
|
34
|
15
|
1.9
|
100
|
1.6
|
130
|
12
|
|
TC1405017/250
|
14×50
|
17
|
48
|
22
|
4
|
200
|
1.6
|
250
|
12
|
|
TC1806421/410
|
18×64
|
21
|
60
|
28
|
6.6
|
330
|
1.6
|
410
|
12
|
|
TC1906522/450
|
19×64.5
|
22
|
63
|
28.5
|
7.6
|
360
|
1.6
|
450
|
12
|
|
TC2208626/610
|
22×86
|
26
|
74
|
34
|
9.5
|
490
|
1.6
|
610
|
12
|
|
TC2408628/720
|
24×86
|
28
|
79
|
37
|
11.6
|
580
|
1.6
|
720
|
12
|
|
TC2408828/720
|
24×87.5
|
28
|
79
|
37
|
11.5
|
580
|
1.6
|
720
|
12
|
|
TC2609230/850
|
26×92
|
30
|
86
|
40
|
13.7
|
680
|
1,6
|
850
|
12
|
|
TC3010834/1130
|
30×108
|
34
|
98
|
46
|
18
|
900
|
1.6
|
1130
|
12
|
