无挡渔船用链条

材料：U1:CM370；U2:CM490；U3:CM690 表面处理：原色或根据客户要求

关键词：

无挡渔船用链条

所属分类：

产品咨询：

产品描述

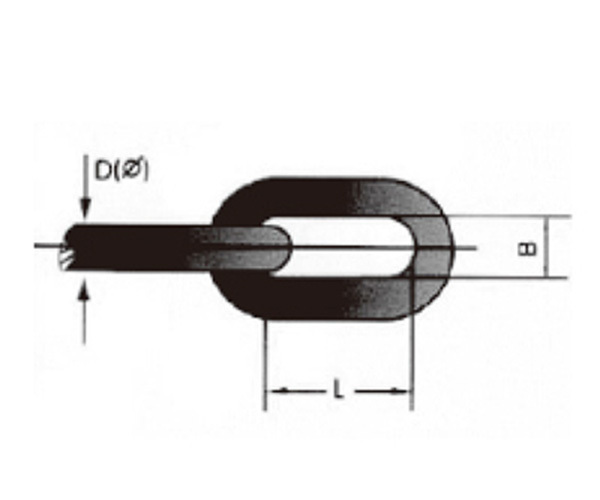

　　Code,dimension and prorerties

D（φ） diameter inch mm		Chain link size		Am1 U1 stud link chain		Am2 U2 stud link chain		Am3 U3 stud link chain		Appro weight 27.5 kg
D（φ） diameter inch mm		Outside length mm	Outside width mm	Proof load kn	Breaking load kn	Proof load kn	Breaking load kn	Proof load kn	Breaking load kn	Appro weight 27.5 kg
1/2	12.5	75	45	28.75	57.81	41.2	82.6	56.4	112.8	85.41
9/16	14	84	50.4	34.78	69.93	51	101.9	70.76	141.51	106.55
5/8	16	96	57.6	47.1	94.72	66.2	132.3	92.42	184.83	139.43
11/16	17.5	105	63	56.35	113.31	78.89	157.78	110.55	221.1	178.35
3/4	19	114	68.4	66.42	133.57	93.6	187.2	130.32	260.64	217.68
13/16	20.5	123	73.8	77.33	155.49	108.64	217.27	151.7	303.42	229.14
7/8	22	132	79.2	89.06	179.08	125.4	250.9	174.4	349.4	264.49
15/16	24	144	86.4	105.98	213.25	149.9	298.9	207.9	415.8	341.82
1-1/16	26	156	93.6	124.38	250.12	175.4	350.8	244	488	369.94
1-1/8	28	168	100.8	144.26	290.08	203.8	406.7	283	566	427.04
1-3/16	30	180	108	165.6	333	234.2	467.5	324.9	649.8	490.98
1-1/4	32	192	115.2	188.42	378.88	265.6	531.2	369.6	739.3	559.65
1-5/16	34	204	122.4	212.7	427.72	299.9	599.8	417.3	834.6	671.52
1-7/16	36	216	129.6	238.46	479.52	336.1	672.3	467.8	935.7	707.85
1-1/2	38	228	136.8	265.7	534.28	374.4	748.7	521.3	1042.5	788.98
1-9/16	40	240	144	294.4	592	414.5	829.1	577.6	1155.2	869.36
1-5/8	42	252	151.2	324.58	652.68	457.7	915.3	636.8	1273.6	959.3
1-3/4	44	264	158.4	356.22	716.32	502.7	999.6	698.9	1398	1111.25
1-13/16	46	276	165.6	389.34	782.92	548.8	1097.6	763.9	1527.8	1152.07
1-7/8	48	288	172.8	423.94	852.48	597.8	1195.6	831.7	1663.5	1256.26
2	50	300	180	460	926.09	648.8	1239.6	902.5	1805	1360.41
2-1/16	52	312	187.2	497.54	1000.48	697.63	1395.26	976.14	1952.28	1485.61
2-1/8	54	324	194.4	536 54	1078.92	752.33	1504.66	1052.68	2105.36	1648.08
2-3/16	56	336	201.6	577.02	1160.32	809.09	1618.18	1132.1	2264.2	1715.97
2-5/16	58	348	208.8	618.98	1244.68	867.91	1735.82	1214.4	2428.8	1844.5
2-3/8	60	360	216	662.4	1332	928.8	1857.6	1299.6	2599.2	1973.29
2-7/16	62	372	223.2	707.3	1422.28	991.75	1983.5	1387.68	2775.36	2101.56
2-1/2	64	384	230.4	753.66	1515.52	1056.77	2113.54	1478.66	2957.32	2298.47
2-9/16	66	396	237.6	801.5	1611.72	1123.85	2247.7	1572.52	3145.04	2398.1
2-11/16	68	408	244.8	850.82	1710.88	1192.99	2385.98	1669.26	3338.52	2522.88
2-3/4	70	420	252	901.6	1813	1264.2	2528.4	1768.9	3537.8	2697.65
