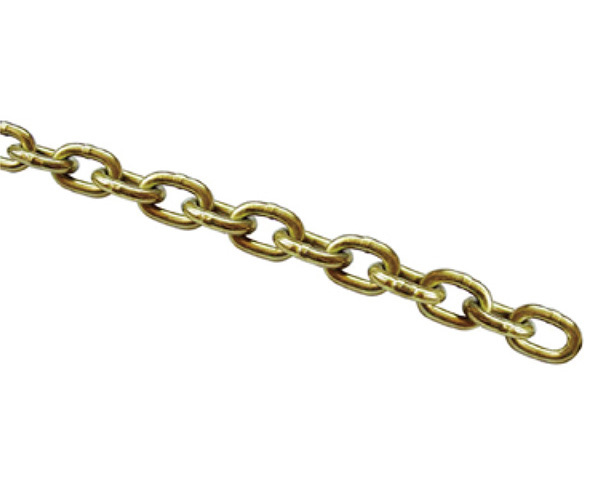

美国标准链条ASTM80
零售价
0.0
元
市场价
0.0
元
浏览量:
1000
产品编号
数量
-
+
库存:
0
产品描述
参数
1.PROOF COIL ASTM80(G30)
|
NOMINAL
SIZE |
WORKING LOAD
LIMINT(MAX) |
PROOF LOAD
(MIN) |
MIN.BREA-KINGLOAD
|
WEIGHT
PER 100' |
INSIDE
LENGTH(MAX) |
INSIDE
WIDTH(MIN) |
|||||||
|
inches
|
mm
|
kg
|
lb
|
kn
|
lb
|
kn
|
lb
|
kg
|
lb
|
mm
|
inches
|
mm
|
inches
|
|
1/8
|
4
|
190
|
420
|
378
|
850
|
7.56
|
1,700
|
8.8
|
19
|
22.6
|
0.89
|
7.4
|
0.29
|
|
3/16
|
5.5
|
360
|
800
|
7.11
|
1,600
|
14.2
|
3,200
|
18.3
|
40
|
24.1
|
0.95
|
10.2
|
0.40
|
|
1/4
|
7.1
|
600
|
1,330
|
11.8
|
2,650
|
23.6
|
5,300
|
32.7
|
72
|
25.4
|
1.00
|
12.7
|
0.50
|
|
5/16
|
8.7
|
910
|
2,000
|
17.8
|
4,000
|
35.6
|
8,000
|
48.0
|
106
|
27.9
|
1.10
|
12.7
|
0.50
|
|
3/8
|
10.3
|
1,270
|
2,800
|
24.9
|
5,600
|
49.8
|
11,200
|
70.3
|
155
|
31.2
|
1.23
|
15.7
|
0.62
|
|
1/2
|
13.5
|
2,190
|
4,800
|
42.9
|
9,650
|
85.8
|
19,300
|
123
|
271
|
38.9
|
1.53
|
20.3
|
0.80
|
|
5/8
|
16.7
|
3,350
|
7,400
|
65.8
|
14,800
|
131.6
|
29,600
|
184
|
405
|
48.3
|
1.90
|
25.4
|
1.00
|
|
3/4
|
19.8
|
4,700
|
10,400
|
92J5
|
20,800
|
185.0
|
41,600
|
264
|
582
|
54.6
|
2.15
|
28.4
|
1.12
|
|
7/8
|
23
|
6,350
|
14,000
|
124.5
|
28,000
|
249.0
|
56,000
|
368
|
811
|
63.5 |
2.50
|
34.8
|
1.37
|
|
1
|
26.5
|
8,400
|
18,600
|
165.4
|
37,200
|
330.8
|
74,400
|
474
|
1045
|
69.9
|
2.75
|
38.1
|
1.50
|
2.HIGH TEST CHAIN ASTM80(G43)
|
NOMINAL
SIZE |
WORKING LOAD
LIMINT(MAX) |
PROOF LOAD
(MIN) |
MIN.BREA-KING LOAD
|
WEIGHT
PER 100' |
INSIDE
LENGTH (MAX) |
INSIDE
WIDTH (MIN) |
|||||||
|
inches
|
mm
|
kg
|
lb
|
kn
|
lb
|
kn
|
lb
|
kg
|
lb
|
mm
|
inches
|
mm
|
inches
|
|
1/4
|
7.1
|
1,180
|
2,600
|
19.1
|
4,300
|
345
|
7,750
|
36.3
|
80
|
21.8
|
0.86
|
10.2
|
0.4
|
|
5/16
|
8.7
|
1,770
|
3,900
|
28.4
|
6,400
|
51.6
|
11,600
|
50.4
|
111
|
26.7
|
1.05
|
12.2
|
0-48
|
|
3/8
|
10.3
|
2,450
|
5,400
|
39.6
|
8,900
|
72
|
16,200
|
72.6
|
160
|
30.3
|
1.19
|
14.7
|
0.58
|
|
1/2
|
13.5
|
4,170
|
9,200
|
68.0
|
15,300
|
122.7
|
27,600
|
128.6
|
284
|
36.0
|
1.43
|
19.1
|
0.75
|
3.TRANSPORT CHAIN ASTM80(G70)
|
NOMINAL
SIZE |
WORKING LOAD
LIMINT(MAX) |
PROOF LOAD
(MIN) |
MIN.BREA-KING LOAD
|
WEIGHT
PER 100' |
INSIDE
LENGTH (MAX) |
INSIDE
WIDTH (MIN) |
|||||||
|
indies
|
mm
|
kg
|
lb
|
kn
|
lb
|
kn
|
lb
|
kg
|
lb
|
mm
|
inches
|
mm
|
inches
|
|
1/4
|
7.1
|
1,430
|
3,150
|
27.8
|
6,300
|
56.0
|
12,600
|
34.0
|
75
|
21.8
|
0.86
|
11.4
|
0.45
|
|
5/16
|
8.7
|
2,130
|
4,700
|
41.8
|
9.400
|
83.6
|
18,800
|
50.4
|
111
|
25.6
|
1.01
|
11.7
|
0.46
|
|
3/8
|
10.3
|
2,990
|
6,600
|
58.7
|
13.200
|
117.4
|
26,400
|
71.0
|
156
|
30.2
|
1.19
|
14.0
|
0.55
|
